Water/Air/Oil Pressure Transducer Output 4-20mA/0-10V/RS485
The pressure sensor use classic 2088 type head, which is especially suitable for water/air/oil pressure measurement. The 304/316L stainless steel seal construction makes it to operate in moist or harsh environment for a long time. The pressure sensor can measure the medium temperature -40~ + 60℃ (-40~ + 140℉). The measuring range is -0.1~60MPa / -1~600bar / -14~8702psi, which can be selected according to actual needs. The internal ASIC converts the mV signal to standard current (4-20mA / 0-20mA), voltage (0-5V / 1-5V / 0-10V) or RS485 signal.
Water/air/oil pressure transducer specification
Water/air/oil pressure transducer dimension drawing
Water/air/oil pressure transducer wiring diagram
Water/air/oil pressure transducer specification
|
Model |
ATO-PRES-P400 |
|
Weight |
1.6kg |
|
Measuring range |
-0.1~60MPa (-1~600bar/-14~8702psi) |
|
Pressure type |
Gauge pressure, absolute pressure, sealed pressure |
|
Measure medium |
Air, water, oil |
|
Power supply |
DC 12V, DC 24V, DC 12-36V |
|
Output signa |
4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V, RS485 |
|
Accuracy |
±0.5%FS, ±0.3%FS |
|
Zero temperature drift |
±0.03%FS/℃ |
|
Sensitivity temperature drift |
±0.03%FS/℃ |
|
Long term stability |
≤0.2%FS/year |
|
Overload pressure |
200%FS |
|
Frequency response (-3dB) |
5kHz~650kHz |
|
Thread of pressure connection |
G1/4, G1/2, 1/4NPT, 1/2NPT, M14*1.5, M20*1.5 |
|
Response time |
＜10ms |
|
Operating temperature |
-40~+80℃ (-40~+176℉) |
|
Medium temperature |
-40~+60℃ (-40~+140℉) |
|
Material |
Housing: 304/316L stainless steel Fill fluid: silicon oil Pressure port: 304/316L stainless steel Separating diaphragm: 304/316L stainless steel |
|
Protection class |
IP67 |

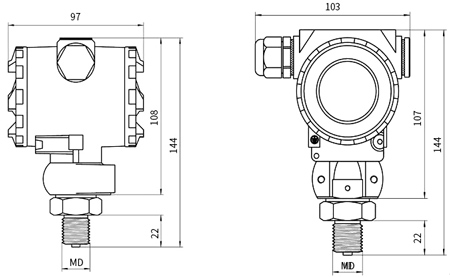

Water/air/oil pressure transducer dimension drawing

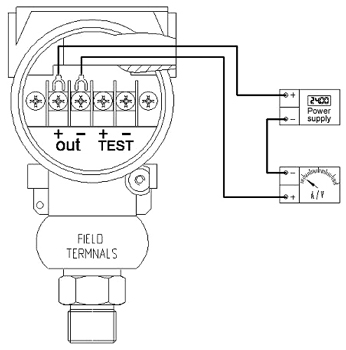

Water/air/oil pressure transducer wiring diagram
