100/300/3000/5000 PSI High Temperature Pressure Sensor
The high temperature pressure sensor can measure the pressure of air,
water and oil in humid or harsh environments for a long time. Its head is the classic 2088 head. The pressure sensor has selectable output signals such as current (4-20mA / 0-20mA), voltage (0-5V / 1-5V / 0-10V) or RS485. Measuring range -0.1~60MPa / -1~600bar / -14~8702psi can be customized. Medium temperature -20~ + 300℃ (-4~ + 572℉).
Outage and commissioning steps for the high temperature pressure transducer.
1. Outage method of the high temperature pressure transducer
When stopping, first close the sampling valve of the high temperature pressure sensor. Then slowly open the drain valve to remove the measured pressure. If there is no drain pressure, the measured pressure can only be removed by slowly loosening the joint thread of the pressure sensor. During operation, please pay attention to the injury caused by the medium pressure.
2. Commissioning method of the high temperature pressure transducer
When commissioning, open the sampling valve of the high temperature pressure sensor.
High temperature pressure sensor specification
High temperature pressure sensor dimension drawing
High temperature pressure sensor wiring diagram
water and oil in humid or harsh environments for a long time. Its head is the classic 2088 head. The pressure sensor has selectable output signals such as current (4-20mA / 0-20mA), voltage (0-5V / 1-5V / 0-10V) or RS485. Measuring range -0.1~60MPa / -1~600bar / -14~8702psi can be customized. Medium temperature -20~ + 300℃ (-4~ + 572℉).Outage and commissioning steps for the high temperature pressure transducer.
1. Outage method of the high temperature pressure transducer
When stopping, first close the sampling valve of the high temperature pressure sensor. Then slowly open the drain valve to remove the measured pressure. If there is no drain pressure, the measured pressure can only be removed by slowly loosening the joint thread of the pressure sensor. During operation, please pay attention to the injury caused by the medium pressure.
2. Commissioning method of the high temperature pressure transducer
When commissioning, open the sampling valve of the high temperature pressure sensor.
High temperature pressure sensor specification
|
Model |
ATO-PRES-P400G |
|
Weight |
1.6kg |
|
Measuring range |
-0.1~60MPa (-1~600bar/-14~8702psi) |
|
Pressure type |
Gauge pressure, absolute pressure, sealed pressure |
|
Measure medium |
Air, water, oil |
|
Power supply |
DC 12V, DC 24V, DC 12-36V |
|
Output signal |
4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V, RS485 |
|
Accuracy |
±0.5%FS, ±0.3%FS |
|
Zero temperature drift |
±0.03%FS/℃ |
|
Sensitivity temperature drift |
±0.03%FS/℃ |
|
Long term stability |
≤0.2%FS/year |
|
Overload pressure |
200%FS |
|
Frequency response (-3dB) |
5kHz~650kHz |
|
Thread of pressure connection |
G1/4, G1/2, 1/4NPT, 1/2NPT, M14*1.5, M20*1.5 |
|
Response time |
＜10ms |
|
Operating temperature |
-40~+80℃ (-40~+176℉) |
|
Medium temperature |
-20~+300℃ (-4~+572℉) |
|
Quantity of cooling fins (medium temperature) |
3 pieces (-20~+150℃/-4~+302℉), 5 pieces (-20~+200℃/-4~392℉), 7 pieces (-20~250℃/-4~+482℉), 9 pieces (-20~300℃/-4~+572℉) |
|
Material |
Housing: 304/316L stainless steel Fill fluid: silicon oil Pressure port: 304/316L stainless steel Separating diaphragm: 304/316L stainless steel |
|
Protection class |
IP67 |

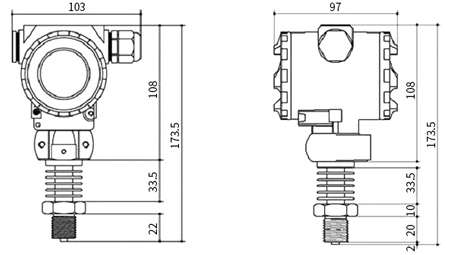

High temperature pressure sensor dimension drawing

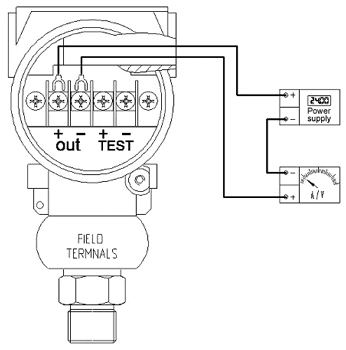

High temperature pressure sensor wiring diagram
